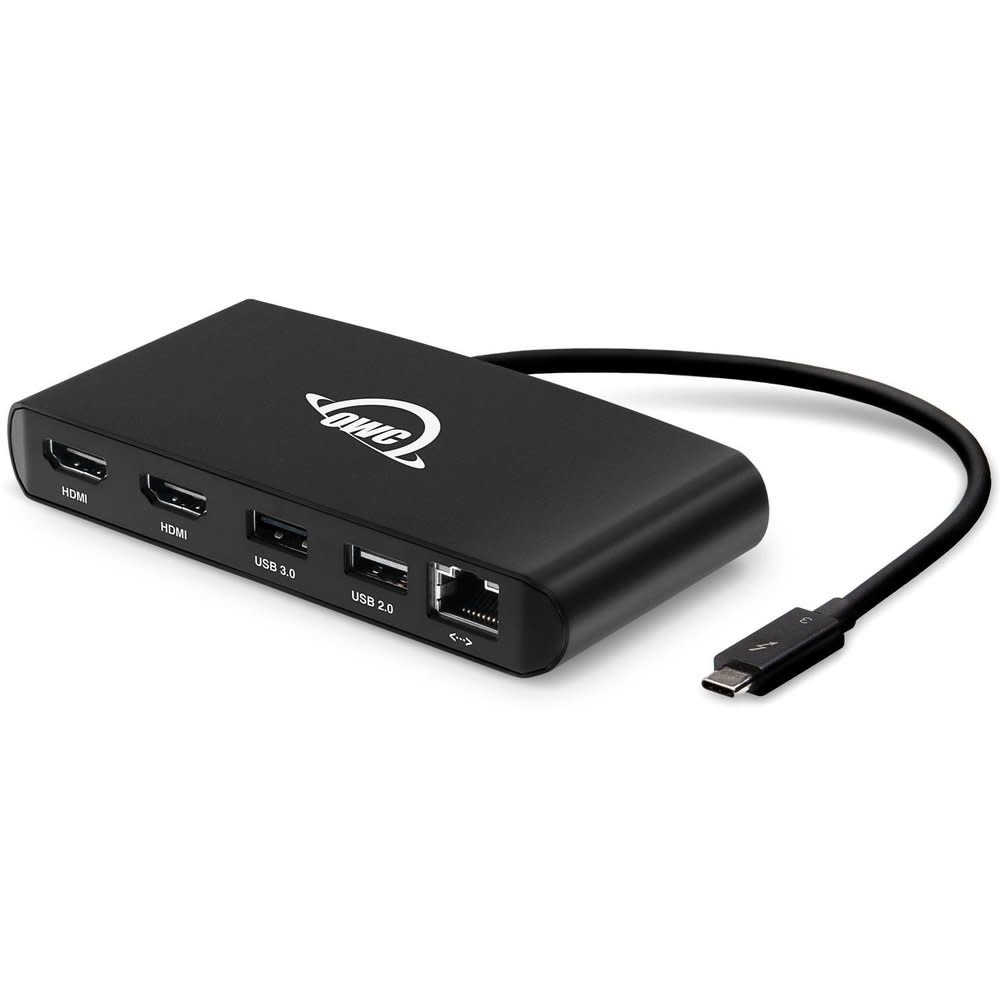

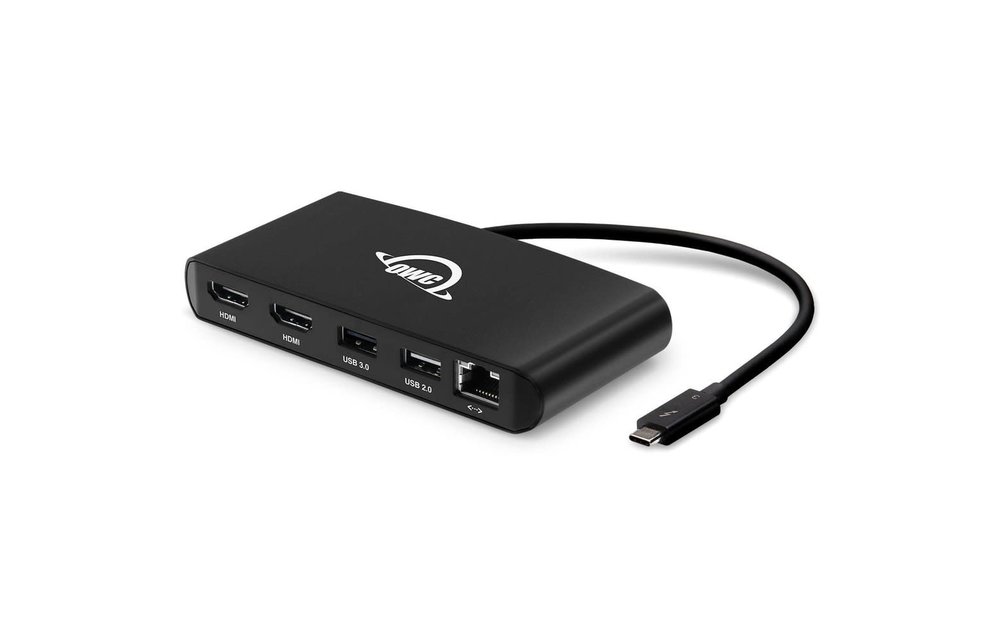

    OWC 5-Port Thunderbolt 3 mini Dock - 2 x HDMI, 1 x USB 3, 1 x USB 2, Ethernet 1000BT *Bus-Powered*; 2 Year OWC Limited Warranty

    Product description

    Highlights
    • Connect two 4K displays via two HDMI 2.0 ports
    • HDCP 2.2 compatible for effortless streaming of 4K UHD content
    • Supports HDMI precision multi-channel audio (LCPM, DTS, and Dolby Digital)
    • One Gigabit Ethernet port with PXE Boot and Wake-on-LAN support
    • Connect a portable drive, flash drive, or card reader via one USB 3 5Gb/s port1
    • Charge small mobile devices and most smartphones via USB 3 port2
    • Connect a keyboard or mouse via USB 2 port
    • Bus-powered and portable
    • Integrated 7.2-inch Thunderbolt 3 cable
    • Thunderbolt certified for macOS and Windows machines
    Experience the Best of Thunderbolt
    The OWC Thunderbolt 3 mini Dock harnesses the full potential of your laptop’s Thunderbolt 3 port—fast data transfers, dual 4K display support, and small device charging power—creating a hub of powerful connections. Built by the world’s largest producer of Thunderbolt devices, OWC follows the highest standards in engineering and manufacturing, so you can use the Thunderbolt 3 mini Dock with full confidence in its compatibility and precision performance.

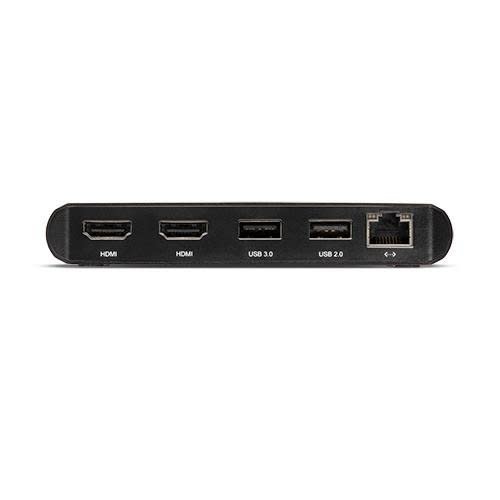

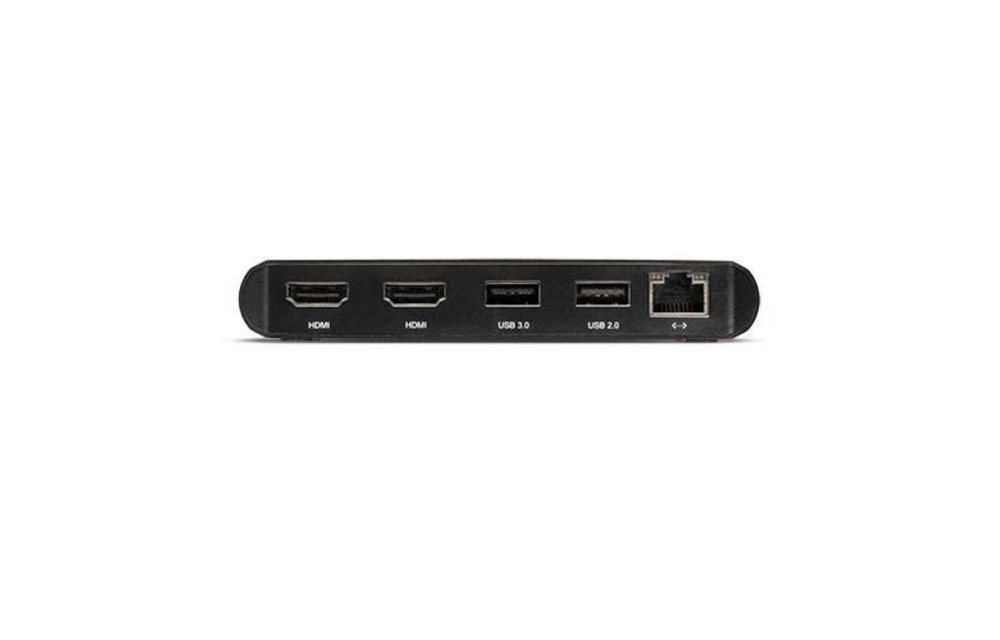

    A hub of powerful connnections:
    • (2) HDMI ports
    • (1) USB 3.0 port
    • (1) USB 2.0 port
    • (1) Gigabit Ethernet port
    See What You’ve Been Missing

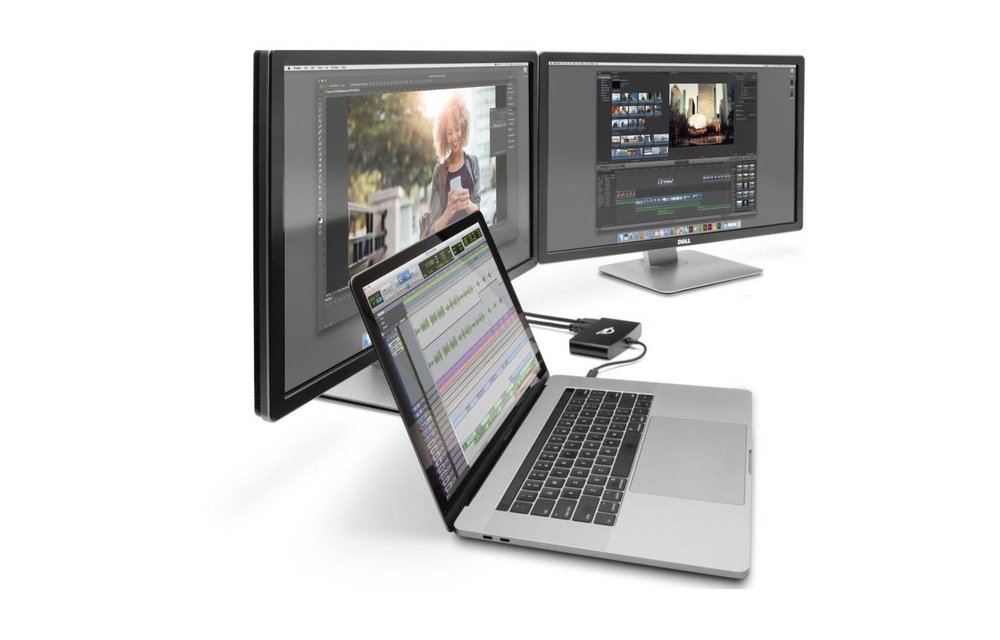

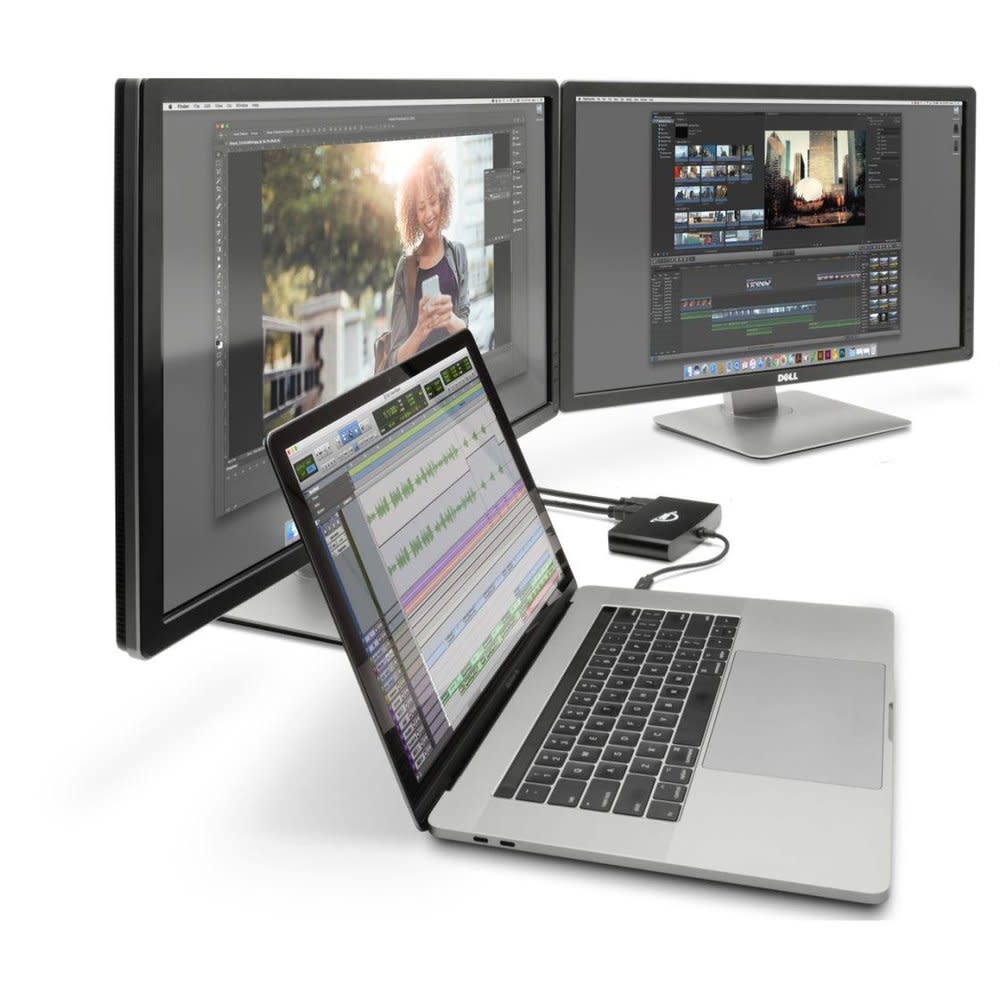

    The OWC Thunderbolt 3 mini Dock effectively utilizes your computer’s Thunderbolt 3 bandwidth potential (up to 40Gb/s) to support two 4K @ 60Hz displays without any performance impact. Transform your notebook’s single display into a three-screen multiplex and increase your productivity with extended or mirrored modes. Experience, crystal-clear vibrant 4K video and high-fidelity audio in gaming and uncompressed video streaming in high action sports and movies. From perfect pixels to smooth streaming, the OWC Thunderbolt mini dock helps you see what you’ve been missing.
    Connections Are the Key to Success
    Through its USB 3 and USB 2 ports, the OWC Thunderbolt 3 mini Dock opens up a world of convenience and functionality wherever you work. Control your workspace with the ease of a full-sized keyboard or mouse. Back up work to an external drive. Import files from a flash drive, card reader, or optical drive. Send files to a printer. Charge up small mobile devices. With extra connections, it’s easy to keep up with your potential.
    Stream, Share and Surf Faster, More Reliably
    Truly a must have for mobile professionals, the OWC Thunderbolt 3 mini Dock offers a Gigabit Ethernet port for a faster, more reliable internet connection. Enjoy a speedy server connection, uninterrupted downloads, and reliable file transfers while saying goodbye to aggravatingly low-quality hotel and public Wi-Fi connections.

    Be at Your Best Anywhere
    Even with its huge workflow benefits, the OWC Thunderbolt 3 mini Dock is small enough to fit discreetly on your desktop or inside a gear bag for mobile use. The lightweight, bus-powered aluminum housing and its 7.2-inch tethered Thunderbolt 3 cable eliminate the typical dock’s separate connection cable and power adapter. Nothing to lose or forget, no agonizing over which device to disconnect from your port-limited machine, no extra bulk...the OWC Thunderbolt 3 mini Dock truly lets you work at your best anywhere.
    Disconnect in One Click
    OWC Dock Ejector software safely disconnects drives connected to the OWC Thunderbolt 3 mini Dock in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Thunderbolt 3 mini dock.
    Trusted by Pros & Enthusiasts the World Over
    We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back our hardware with a 2 Year OWC Limited Warranty and award-winning customer support.


    1. USB 3 port supports bus-powered drives with .9A (900mA) or less power requirements as well as drives connected to a power adapter.
    2. USB 3 port provides .9A (900mA) of power. This will charge devices requiring 1.0A at slower rate than factory power adapter. Larger devices like tablets requiring 2.1A will not charge. There is no power supplied to USB 3 (or USB 2) port while host computer is turned off or in “sleep” mode.

    Notes

    • This device will not work with USB-C host ports. Thunderbolt 3 or later is required.
    • Certified HDMI 2 cables required for use with HDMI 2.0 ports and displays.
    • Recommended per port resolution up to 3840x2160 @ 60Hz and will pass an HDMI audio signal from the host, for displays that have speakers or support headphones. Full 4K resolution (4096 x 2160) may work with select displays.
    • Dual displays are supported but the available resolution and refresh rates are dependent upon the specific hardware and drivers used by your system.
    • When connected to an Apple M1 generation host, only one external display (up to 4K @ 60Hz with this device) is supported. Apple may address these limitations in future system updates.
    • USB ports do not support the Apple Super Drive.
    • The USB ports do not receive power when the host computer is in sleep mode. If your USB ports are no longer accessible after waking from Sleep in Windows, please download OWC Diagnostics, launch the application, and follow the prompts. For more details, please see this article. If you need assistance please contact our Support Team.
    • USB 3.0 port supports speeds up to 5Gb/s and provides bus power up to 5V and 0.9A (4.5W). Devices which require more bus power will not function on this port. An optional, auxiliary power adapter may be available for some bus-powered enclosures. UASP is supported.
    • Smart phones or iPods with a compatible USB charging cable can recharge via this port but may be slower than other charging methods. Tablet and iPad charging are not supported.
    • USB 2.0 port supports speeds up to 480 Mb/s and provides up to 5V and 0.5A (2.5W) of bus power. Devices which require more bus power will not function on this port.
    • Ethernet – the device should detect and connect to the network automatically once the Ethernet cable is connected. This device supports Wake-on-LAN (WoL) which allows the network to wake your computer from sleep or standby mode.

    Specifications

    Article number
    OWCTB3MDK5P
    SKU
    OWCTB3MDK5P
    EAN
    810586035101
    OWC 5-Port Thunderbolt 3 mini Dock - 2 x HDMI, 1 x USB 3, 1 x USB 2, Ethernet 1000BT *Bus-Powered*; 2 Year OWC Limited Warranty
