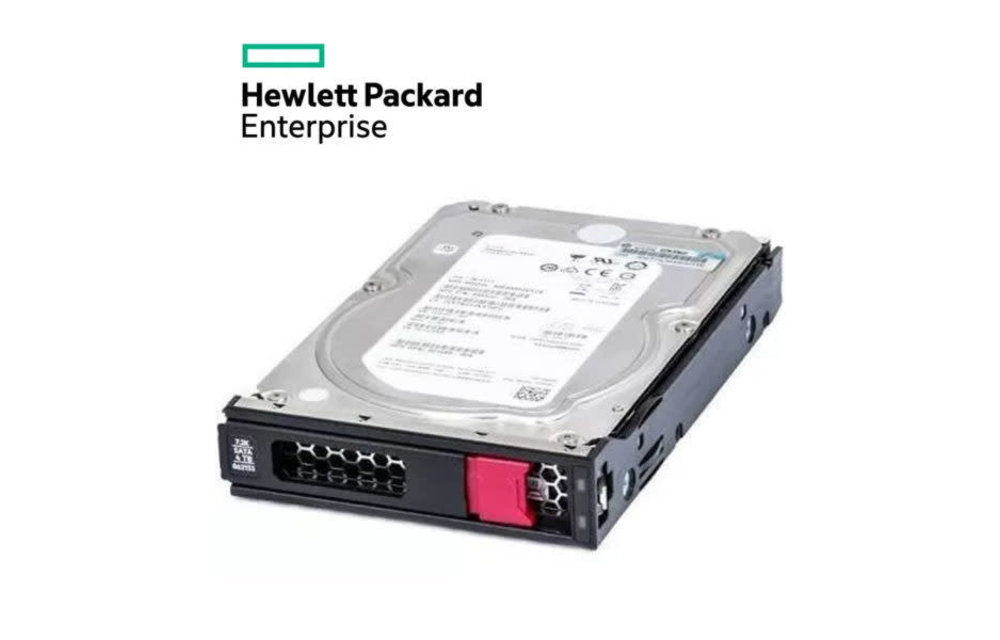

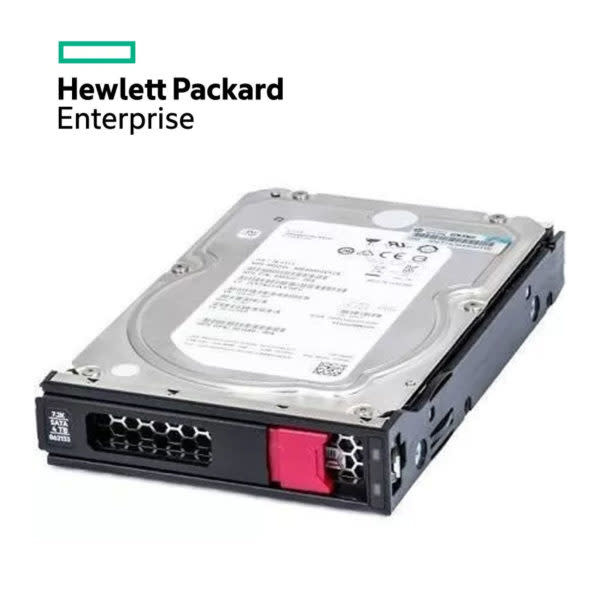

    HPE 4TB 7200rpm SATA Hot Plug Drive

    Product description

    HPE 861683-B21 4TB 7200RPM 3.5inch LFF Digitally Signed Firmware SATA-6Gbps Low Profile Carrier Midline Hard Drive for ProLiant Generation10 Servers (Brand New with 3 Years Warranty)



    HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

    Designed and Engineered to Provide High Capacity and Reliable Secure Storage
    HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments.
    Broad portfolio of optimized solutions provide up to 12 TB of storage, and growing in a single device.
    Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives.
    Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points.
    Prevent unauthorized access to your data with HPE Digitally Signed Firmware.
    It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

    Support Entry/SMB servers with value priced drives
    HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
    Non-mission critical hard drives at the lowest $/GB.
    6 Gb/sec data transfer rate to support existing servers.

    Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

    The HPE 861683-B21 Low Profile Carrier Midline Hard Drive has a 3.5 inch form factor and a 6 Gbps external data transfer rate. It has a spindle speed of up to 7200 RPM and a 4 TB capacity. This Large Form Factor Digitally Signed Firmware Hard Drive uses a SATA-6Gbps interface and comes with 3 Years Warranty.

    Specifications

    Brand: HPE
    MPN: 861683-B21

    Option Part Number: 861683-B21
    Spare Part Number: 862133-001
    Model Number: MB4000GVYZK
    Assembly Number: 846522-004

    General

    Device Type: Hard Drive - Hot-Swap
    Capacity: 4 TB
    Form Factor: 3.5 inch LFF
    Interface: SATA-6Gbps
    Bytes per Sector: 512
    Drive Technology (Fill): Air
    Format type: 512n
    Carrier Type: Low Profile Carrier (LPC)
    Workload: Midline
    Features: Digitally Signed Firmware
    Bundled with: HPE Low Profile Carrier
    Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
    Height: 26.10 mm

    Performance

    Drive Transfer Rate: 6 Gb/sec (external)
    Spindle Speed: 7200 RPM
    OD Media Rate, Max Sequential Throughput (MiB/s): 200
    128Kib Random Rd (IOPs): 108
    128Kib Random 70% RD/ 30% WT (IOPs): 105
    128Kib Random 50% RD/ 50% WT (IOPs): 105

    Expansion & Connectivity

    Interfaces: 1 x SATA 6 Gb/s
    Compatible Bay: 3.5" LFF

    Power Consumption

    Idle Time: 5.40 Watt
    Random Read: 8.60 Watt
    Random Write: 8.60 Watt
    Sequential Read: 7.90 Watt
    Sequential Write: 7.60 Watt

    Product Dimensions

    Height: 2.61 cm
    Width: 10.55 cm
    Depth: 15.66 cm

    Compatibility Information

    Designed For

    HPE ProLiant DL Series: DL180 Gen10 (3.5inch), DL180 Gen10 Entry (3.5inch), DL180 Gen10 SMB (3.5inch), DL20 Gen10 (3.5inch), DL20 Gen10 Entry (3.5inch), DL20 Gen10 Performance (3.5inch), DL20 Gen10 solution (3.5inch), DL325 Gen10 Base (3.5inch), DL325 Gen10 Plus (3.5inch), DL325 Gen10 Solution (3.5inch), DL385 Gen10 Plus (3.5inch), DL385 Gen10 Plus Entry (3.5inch)

    HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)

    Specifications

    Article number
    861683-B21
    SKU
    861683-B21
    EAN
    190017063591
    HPE 4TB 7200rpm SATA Hot Plug Drive
    $ 295.00
    HPE 4TB 7200rpm SATA Hot Plug Drive
    2 In stock
    Add to cart
